TopLine L Loft Version (2 Door Front Right max. 20 mm thickness) with STB 11 - Weight 50 kg per door; Max. Door Dimensions: Height 2600 mm & Width 550-2000 mm

Item code: 9333863.S

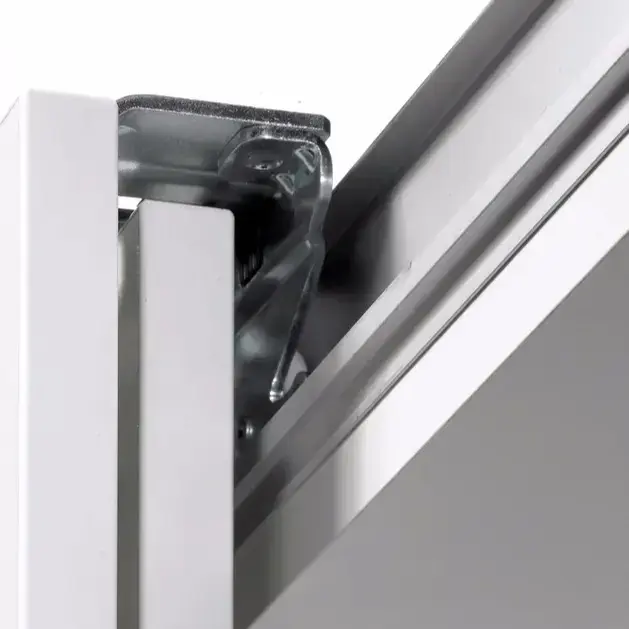

• 2-track, top-running sliding door system

• For Door Thickness : Max 20 mm

• For Wooden doors and Aluminium framed doors

• } Overlay door position

• Door weight: up to 50 kg

• Door height: up to 2,600 mm

• Door width: 550 – 2,000 mm

• Door thickness: EB32: 20 mm door thickness,

• EB36: 25 mm door thickness

• Height adjustment: ± 2 mm

• Widely opened doors, through offset doors (34 mm offset) /

• optional: flush doors (0 mm offset)

• Silent System in closing, opening and colliding direction

• Tested to DIN EN15706, Level 3 for 40,000 opening-closing cycles
