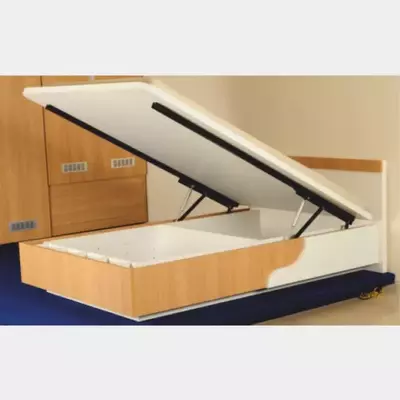

Ebco Pro-Lift Bed Fittings With 5 Feet Extended Arm and Pro-lift Gas Pump

DESCRIPTION

• Ideal for storage under bed.
• Special gas spring available in four loads.
• 30° opening angle allows easy access.
• Easy to lift (with the weight of top board) with minimum force.
• Easy access as the gas lift keeps the bed top stay.
• Long brackets provided for better support to the bed platform.

FITTING INSTRUCTIONS

1. Fit the Fix Brackets on bed frame as per given dimension. (Ref. Fig.1) without the gas spring fitted.
2. Now fix the bed platform to the top brackets. (Ref. Fig.2).
3. Lastly fit gas spring as shown in diagram (ref. Fig.3).

 Special Note : Installation dimensions are only recommendation and will vary depending on type of construction design.

CAUTION

• Gas springs used are highly pressured, do not dismantle or damage and do not expose to heat or fire.
• Ensure that the top bed is locked properly with the bed frame.
• Do not tighten nut fully, Gas Spring should be able to rotate.
• Do not apply paint or polish on the product.
• No addtional hinges to be used.
